DM-JETLINER®
Digital inline metallization on paper and label materials
DM-JETLINER® – A glossy look along the entire line
DM-JETLINER® lets you transfer metallization effects onto paper and label materials during digital printing. The transfer process can be integrated seamlessly inline into your digital printing machine — upstream from the digital color printing. Once the foil is applied with a UV-curing adhesive to the unprinted substrate, the PET carrier is removed, and the substrate can be overprinted within the printing machine.
- Can be integrated into production chain
- Follows production speed of the digital printing press
- Foil, adhesive and enhancement module from one source
- Speed to market
- Late stage customization
- Custom-made hologram foils available (tickets, etc.)
- Foil is overprintable (imitate/replace offset coldfoil)
- Consignment stock of foil/pay per stamp model
- Automatic foil reordering
Water cooled UV-LED curing station
Emission width: 342 mm
Performance: 20 watt/cm²
Change of surface tension
Improve adhesion and wetting
Automatically stepless power control
Compact print engine module
Automatic cleaning unit
Easily accessible
Specifications
| Length/width/height: | approx. 1,790 x 2,040 x 2,345 mm |
| Foil application width: | max. 324 mm |
| Foil application speed: | max. 75 m/min (max. feasible speed depending on substrate) |
| Ink type: | UV curable UV-Ink |
| UV-LED pinning unit: | approx. 3 watt/cm², adjustable over machine control, air-cooled |
| Print head resolution: | 600 x 600 dpi |
| Droplet sizes: | 3/7/11/14 pl |
| Control system: | PC, PLC, touchscreen |
| Electrical requirements: | 3 x 400 VAC, L1, L2, L3, N, PE, 50/60 Hz 16 A fuse, connecting power 11 kW |
| Compressed air: | max. 6.5 bar (oil-free) (hose diameter Ø 10 mm) |
| Register accuracy: | ± 0.20 mm (lengthwise and crosswise) |
| Foil width: | max. 340 mm |
| Print media width: | 150 – 350 mm |
| Outside foil diameter: | max. 300 mm foil length approx. 2,100 m (RPL) |
| Supported substrates: | self-adhesive labels, PP, PE and PET, coated paper |
| File formats: | PDF, TIFF, BMP, EPS |
| Weight: | 2,600 kg |
| All technical data are to be interpreted to be only approximate. | |
Integrated billing system
Convenient, once-per-month invoicing model
Automatic foil reorder upon reaching minimum quantity
Controls the spread of the ink droplets
Adjustable over machine interface
Supports sharp designs
Dancer controlled for constant foil tension
Dynamic foil transport
Able to follow high accelerations of the press
Pneumatic clamping device for easy and fast foil change
DIGITAL METAL® Color Shades
DM-JETLINER®
DIGITAL METAL® Silver
DIGITAL METAL® Cold Silver
DIGITAL METAL® Gold 220
DIGITAL METAL® Gold 385
DIGITAL METAL® Gold Matt 428
DIGITAL METAL® Blue 132
DIGITAL METAL® Green 139
DIGITAL METAL® Red 142
DIGITAL METAL® Copper Light 355
DIGITAL METAL® Matt 396
DIGITAL METAL® High Gloss
DIGITAL DIFFRACTION® Laser
DIGITAL DIFFRACTION® Crosslight
DIGITAL DIFFRACTION® Twinkle
DIGITAL DIFFRACTION® White Stars
DIGITAL HOLO® Promotion
DIGITAL METAL® LUMAFIN® 721 red
DIGITAL METAL® UV-INK
The DIGITAL METAL® UV-INK is a specially developed ink for use with the DM-JETLINER® which enables DIGITAL METAL® transfer finish applications on various substrates like paper for digital printing, label material, PP and PE – and is part of the complete DIGITAL METAL® package.
Real metal effects in digital printing

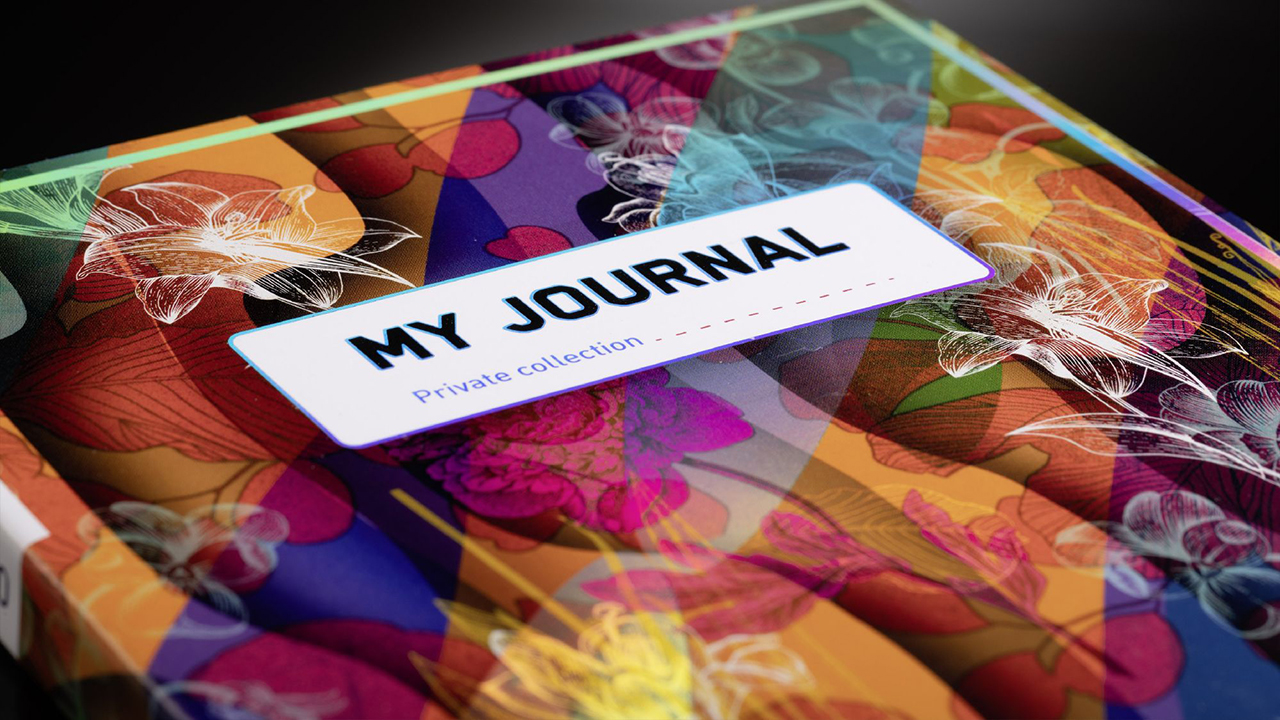

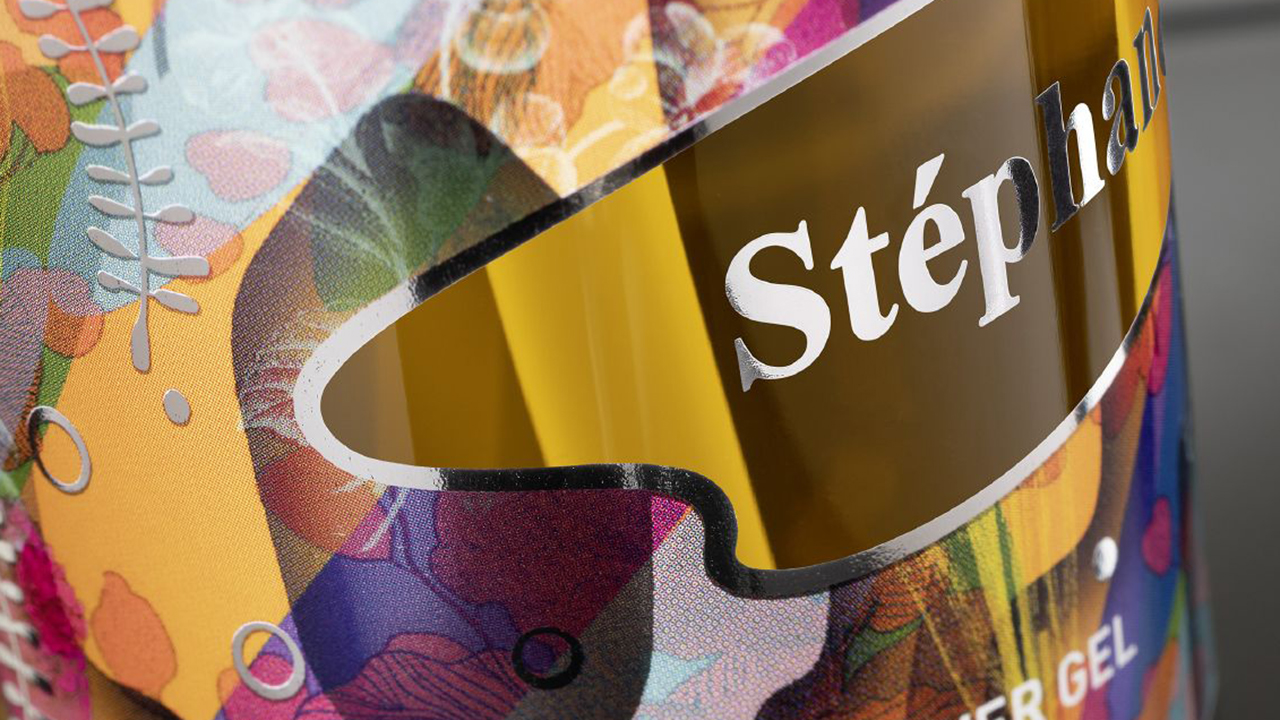

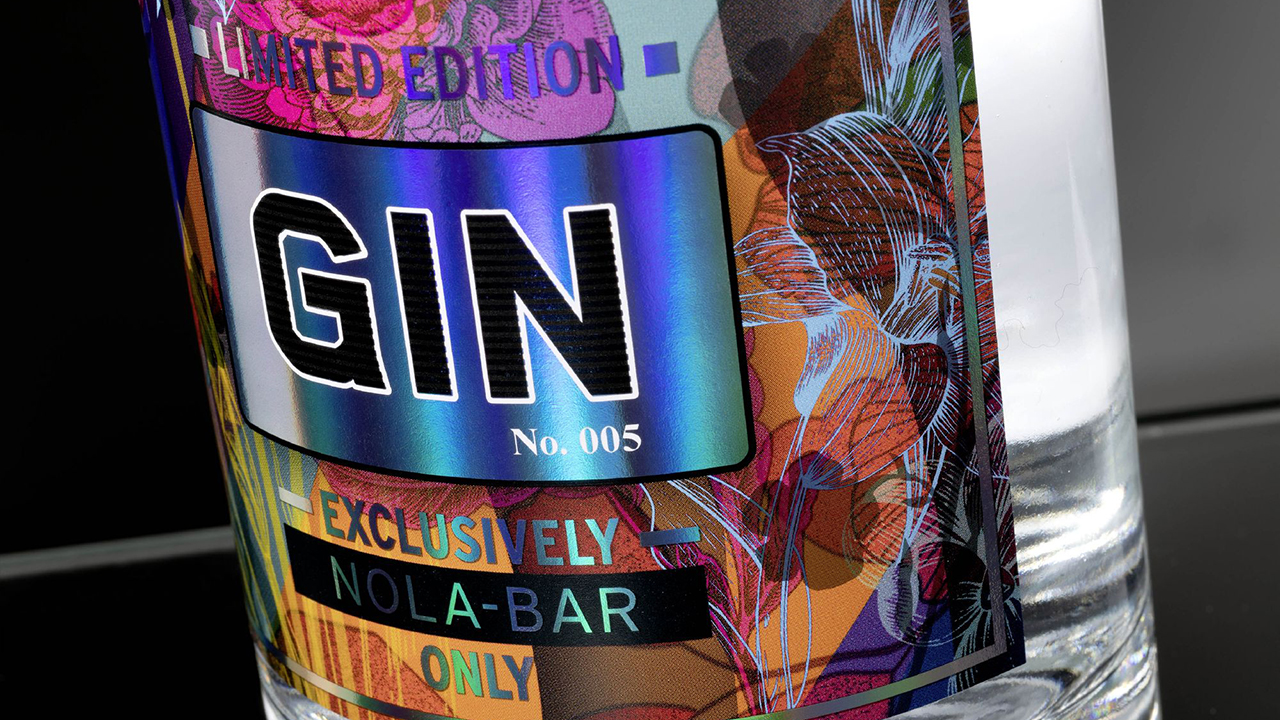

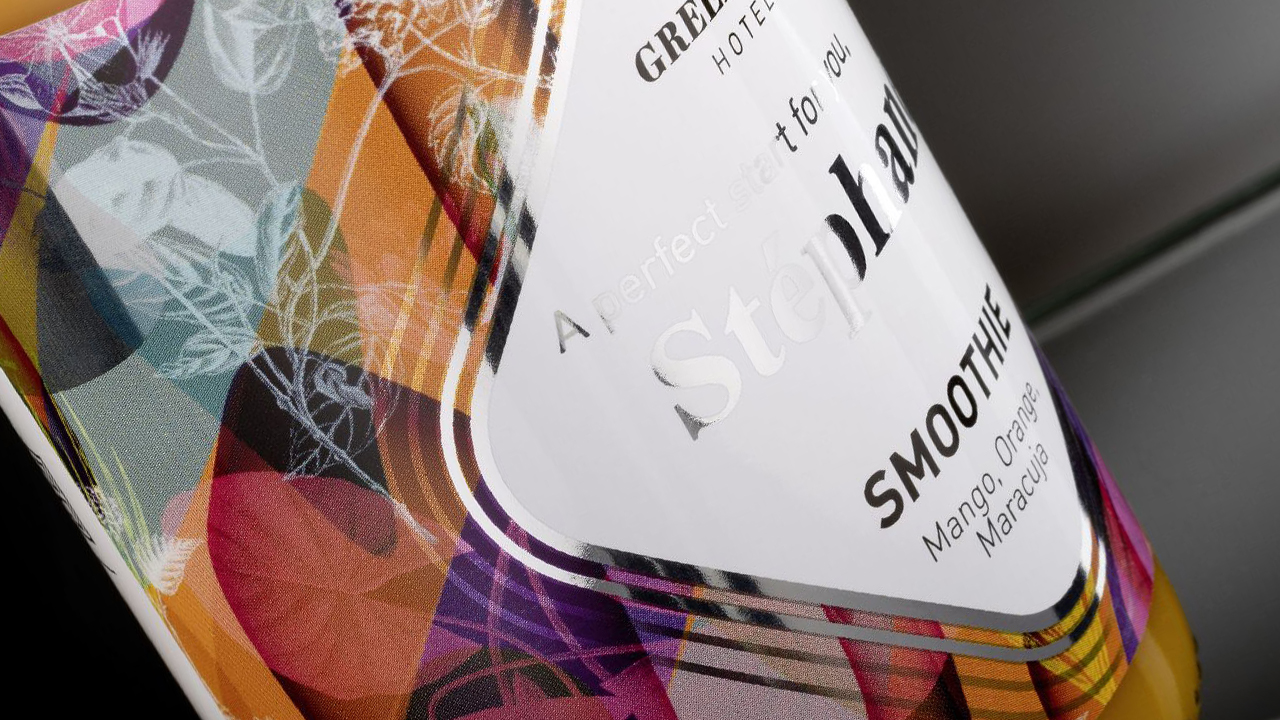

DIGITAL METAL® gives you the option of creating digitally printed products and packaging with real metal effects. Customized foil systems for brilliant, high-gloss finishing give your products that special eye-catching gleam at the Point of Sale.
High gloss motifs with sharp edges
Easy-to-process DIGITAL METAL® foil reproduces your motifs at extremely high gloss levels, with world-class resolution and razor-sharp edges. The foil is transferred onto a digitally printed substrate and can then be overprinted easily using digital or conventional methods.
Design flexibility
Our DIGITAL METAL® complete solution brings you all the benefits of enhancements for your printed products while preserving your entire range of design flexibility. It represents an attractive alternative to metalized papers or cardboard, as DIGITAL METAL® is compatible with everything from partial metallization to full customization.
Whether deployed in mass customization, individualization, small runs, special editions or entire product families – our DM-JETLINER® inline enhancement module lets you refine your packaging and personalize your jobbing work to fit the customer's specifications. There's no need to compromise on flexibility even as you offer attractive decorative options using metal foils. How does it work? DM-JETLINER® can transfer the desired metallization onto paper or a broad range of label materials as part of the digital printing process, while also harnessing the full benefits of DIGITAL METAL®, our economical all-in-one solution.
DIGITAL METAL® blends machine, appropriate foil solutions and ink together into efficient and brilliant real metal enhancements. For you, DIGITAL METAL®, our DM-JETLINER® and customized foil-based solutions open up new perspectives and interesting new fields of business ready to be fascinated by extreme brilliance, world-class resolutions and uncomplicated overprinting along the entire line.
DM-JETLINER®– Digital inline metallization on paper and label materials
Digital finishing with real metal – quick overview of features:
- For mass customization and individualization
- Customized metallic finishing for individual labels/packaging or various label/packaging campaigns
- Attractive embellishment for small runs, special editions or different product series
- Variable data brilliantly highlighted
- Impressive high gloss effects
- Huge variety of colors and metallic shades feasible thanks to overprintability
- Almost no limits for creative design
- Last but not least: late stage customization
